Overview
Towards Multiscale and Physics-Driven Road Safety
Vision: The overarching goal of FINGERTIPS is to design, prototype and test innovative tire treads and asphalts inspired byhuman fingertips, indeed, able to modify their shape to improve gripping attitude in wet conditions. The proposed surfaces will be characterized by polar nanoparticles embedded and properly grooved structure, able to increase friction and consequently safety in mobility applications.
Rationale: Tires and road are the main interaction elements between vehicles and external environment. Nevertheless, such round, black and bouncing objects, in contact with a randomly rough rigid substrate are still widely unknown in their deep working mechanisms, due to the multiple and complex physical effects involved in their use, and to the high nonlinearities of phenomena arising at their interface. Current advances in nanostructures, and in measurement, testing and modelling techniques, will represent the driver to the development of novel approaches to micro and nanostructures, both from the chemical and physical points of view, applied to both sides of tire/road contact.
Approach: The adoption of advanced techniques for road roughness analysis, for polymeric compounds modelling and non-destructive viscoelastic characterization, and for tire friction, energy and temperature evaluation from indoor and outdoor data, will allow to build a consistent knowledge, useful to design materials and surfaces able to overcome the criticalities linked to dry and lubricated contact in mobility.
Expected Outcome: Once collected the results from multidisciplinary experimental sessions and physical models, conceived with the aim to highlight and decouple all the physical variabilities involved in tire/road contact, the adoption of data science processing techniques will allow to work on correlations among the concurring effects. Final target: developing and prototype new tire and road surface archetypes, characterized by proper roughness spectra and chemical affinities, able to optimize the mechanics of the tread particles detachment and the vehicles adherence, with an impact on safety and on the transition phase that mobility is facing.
SAFETY IMPROVEMENTS EVALUATION IN VEHICLE DYNAMICS SIMULATIONS

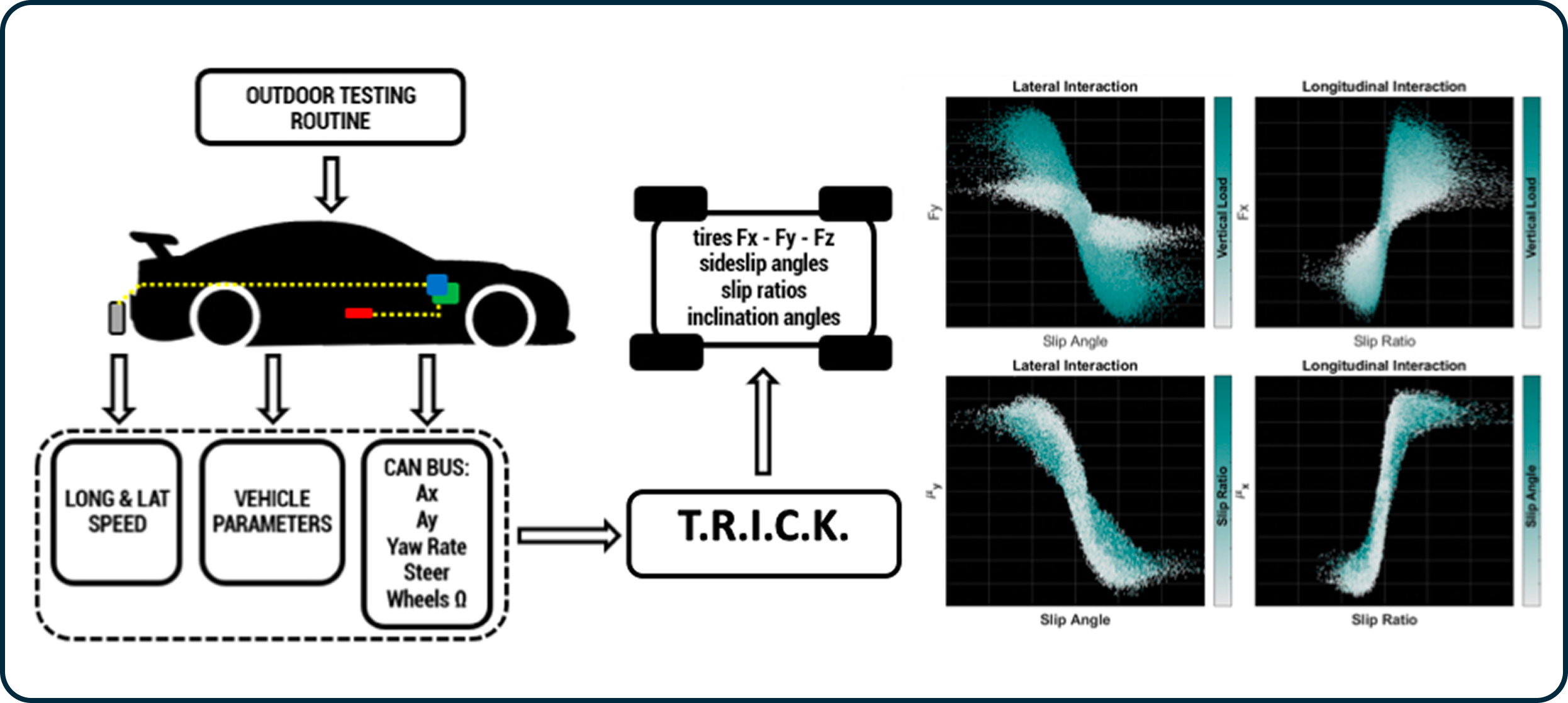

The evaluation of tire operating conditions from vehicle data will be carried out using the T.R.I.C.K. (Tire/Road Interaction Characterization & Knowledge) methodology [37], developed by the UniNa Vehicle Dynamics team. This approach enables the calculation, for each acquired run, of tire forces, slip indices, camber angles, and the resulting tire–road adhesion based on the vehicle data collected under each tested condition.
The evolution of the viscoelastic behavior of the selected tires will be monitored using an innovative device called VESevo, also developed by the same research team. The technology was subsequently transferred to a spin-off company and has since been adopted in several contexts, ranging from Formula 1 to tire manufacturing companies.
Achieved Milestone: Definition of the State of the Art and of the Tires Working Conditions Range
